Find the TCP port your SQL Server listens on

Christa Mason
Updated

Find the TCP port your SQL Server listens on, and whether that port is static or dynamic, so you can configure the fixed TCP endpoint Aiwyn will use.

Steps

  1. Open SQL Server Configuration Manager on the SQL Server.
  2. Expand SQL Server Network Configuration and select Protocols for your instance.
  3. Open TCP/IP and go to the IP Addresses tab.
  4. Read the port values:
    • A value in TCP Port is your static port. 1433 is the default.
    • A value in TCP Dynamic Ports means the instance uses a dynamic port, which can change when SQL Server restarts.

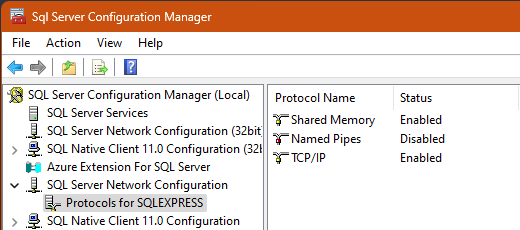

SQL server configuration manager.png

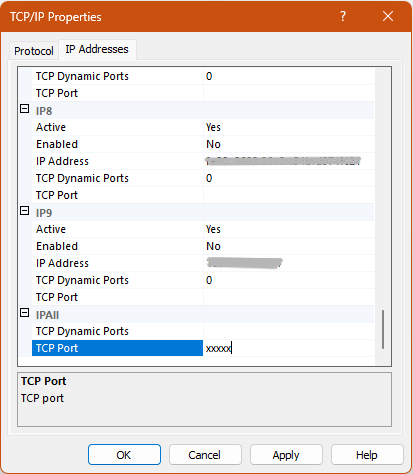

TCP Port.png

Connection details

Use the server/host and port as separate values. The server/host can be an IP address or, for a named instance, a name such as SQLSERVER\INSTANCE. Aiwyn supports named instances when they listen on a static port.

Aiwyn connects to a fixed TCP host and port through the firm's firewall or an SSH tunnel. It does not use SQL Server Browser to discover a dynamic port.

If your port is dynamic

A dynamic port can change when SQL Server restarts, so it cannot be used for Aiwyn's fixed TCP endpoint or a fixed firewall rule. Set a static port before continuing. See Microsoft's official documentation for configuring SQL Server to listen on a specific TCP port.
